Delaware Department of Transportation Boring Log Form

Original DelDOT Log Form (click for a sample .pdf)
2020 DelDOT Log Form (click for a sample .pdf)

Del DOT Log.GeZip

To use the form:

  1. Click on the above .GeZip download link.  Your browser will ask where you want to place the download: You need to save the .GeZip file to your log program's shareable config. file directory (click this link for help in finding the proper directory).
  2. Restart the boring log program to complete the installation.
  3. Next, start a new project.  Choose "Project" > "Default Data Entry Form" and select DelDOT Log as your data entry form to use the older version of the form, or DelDOT Log 2020 to use the current version.
  4. When you're ready to print, press Ctrl-P (to show the report printing dialog), select the borings you're looking to print, then click on the "Report Forms" Print Settings tab and click on either DelDOT Log or DelDOT Log 2020 report forms.

Form GO-09-001

Click For a Larger View

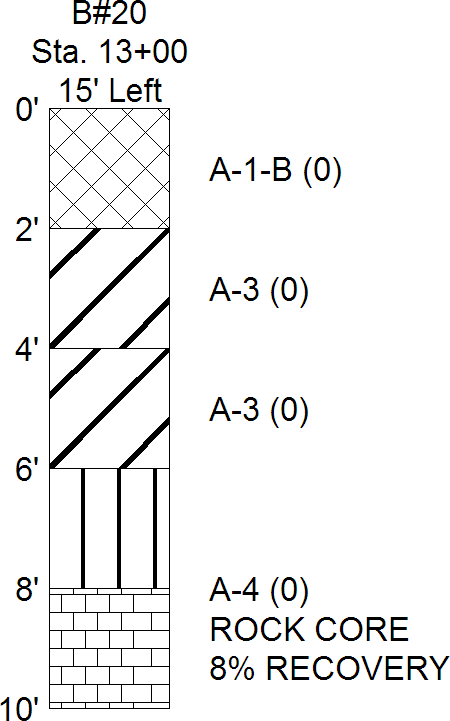

This is a profile form suitable for producing the soil column diagrams required by Delaware DOT's Engineering Instruction GO-09-001 (Revision 9/22/2009).

DelDotFormGO-09-001.GeZip

To use the form:

  1. Click on the above .GeZip download link.  Your browser will ask where you want to place the download: You need to save the .GeZip file to your log program's shareable config. file directory (click this link for help in finding the proper directory).
  2. Restart the boring log program to complete the installation.
  3. Next, start a new project.  Choose "Project" > "Default Data Entry Form" and select DelDOT Profile Borings as your data entry form.
  4. When you're ready to print, press Ctrl-P (to show the report printing dialog), select the borings you're looking to print, then click on the "Report Forms" Print Settings tab and click on the DelDOT Profile Borings report form.
